TEC-2075-FVS
CENTRIFUGE APPLICATIONS

• Horizontal Directional Drilling andf Hydrovac Slurry

• Drilling Fluids Processing & Polishing

• Dewatering

• Barite Recovery

• Meat Rendering & Nutrient Control

• Waste Fluids Treatment, Recovery, and Disposal

• Produced Water Processing

• Pulp and Paper

• Sump Cleaning

• Heavy Oil Drilling and Plant Processes

• Distillers (Brewing Industry)

• Municipal Waste Water Treatment

• Bio Fuel

• Industrial & Chemical

• Vegetable Oil

• Fish Oil & Fish Meat

• Dairy & Beverage

• Marine





PROCESSING SPECIFICATIONS

MAXIMUM HYDRAULIC CAPACITY
607 US-GPM/min. (2.3 M3/min.)
(rated with water)

MAXIMUM RATE OF SOLID LOADING

28,000 lbs/hour
(14 tons/hour)

SOUND LEVEL

90dBa @ 1m


MOBILE REPAIR

WATER-LEAF

SAVE SOME GREEN
SAVE MONEY, TIME AND REDUCE ENVIRONMENTAL IMPACT

Reduce water consumption by up to 70%.

Reduce environmental impact due to fewer trucks required to move multiple pieces of equipment.

Reduce the risk of equipment and operator harm by eliminating the need for cranes to move and setup the equipment.

Reduce waste by providing a means to recondition and recycle water from drilling mud and waste slurry streams.

Provide a safe working environment for operators by eliminating ladders and utilizing stairs for upper level access.

Less tank cleaning.

Less land spreading required.

HOME > CENTRIFUGE MODELS

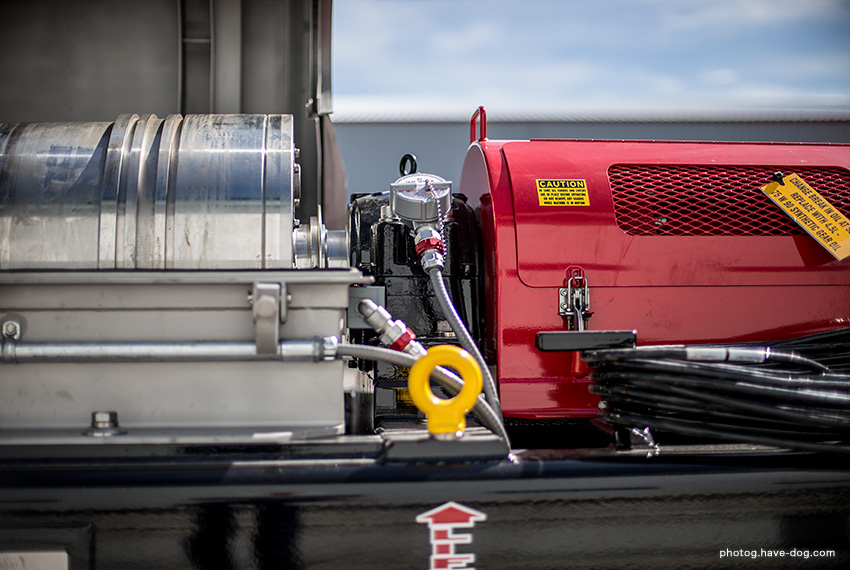

TEC-2075 FULL VARIABLE SPEED CENTRIFUGE

The Tec-2075-FVS centrifuge is a Full Variable Speed model, which provides operators with the ability to adjust operating parameters including the differential speed, bowl speed, and feed rates while the centrifuge is in operation.

Our 2075 Full Variable Speed centrifuge has the added benefit of a "direct drive" conveyor drive assembly. With this new conveyor drive design, we have increased the efficiency of the conveyor drive motor significantly as well as eliminated any maintenance issues associated with utilizing belts and sheaves.

A Pro Logic Control (PLC) and touch screen can also be added to the control system providing a level of control logic to help achieve your process automation and preset parameter needs.

Flexibility, reliability and performance are attributes that all of our centrifuges come with. Tecumseh, we truly are the experts!




CLICK TO ENLARGE


BUILD NOTES

    -6 Solid Discharge Ports
    -6 Liquid Discharge Ports
    -Seals are Viton/Buna-N
    -Stainless Steel Construction
    -Wear Protection
    -Tungsten Carbide
    -Removable Liner in Bowl Section


OPERATING SPEEDS FOR OILFIELD APPLICATIONS

LOW SPEED  Low Speed Operations for High Gravity solids removal (i.e. barite)
    BOWL SPEED: 800 - 1,700 RPM
    ACCELERATION: 182 - 820 G's
    DIFFERENTIAL: 30 - 60 RPM
HIGH SPEED  High Speed Operations for Low Gravity solids removal (i.e. fine drilled solids)
    BOWL SPEED: 1,800 - 2,800 RPM
    ACCELERATION: 920 - 2,226 G's
    DIFFERENTIAL: 10 - 30 RPM
MAXIMUM SAFE SPEED  Maximum Safe Operating Speed
    BOWL SPEED: 2,800 RPM
    ACCELERATION: @ 2,800 RPM: 2,226 G's
    DIFFERENTIAL: 10 - 60 RPM


OTHER SPECIFICATIONS

    BOWL DIMENSIONS: 20" diameter x 75" long
    BEACH ANGLE: 8-degree beach angle
    POOL PORT (POND) ADJUSTMENT: 1 - 7 units of adjustment
    MAIN DRIVE MOTOR: 150hp
    CONVEYOR DRIVE MOTOR: 30hp
    WEIGHT (EMPTY): 14,500 lbs (6,578kgs)
    FLIGHTING PITCH: 146mm (5.74in)
    MAXIMUM SAFE OPERATING CONVEYOR TORQUE: 100,000 in/lbs (11.3 kNn) of torque
    GEARBOX RATIO: 56:1 ratio
    POWER REQUIRED: 2 - 100 amp plug @ 480 VAC


'G' FORCE CALCULATION

*The following is a formula used to calculate 'G' force:
G = Bowl Diameter (in) X Bowl RPM2 X .0000142
